CM8600 R32 Refrigerant Charging System for Air Conditioner Production
-
Hervorheben
R32 refrigerant charging system
,air conditioner production charging station
,CM8600 refrigerant charging equipment
-
Die SituationNeu
-
Anwendbare BranchenHerstellungsbetrieb
-
Gewicht (Kg)300
-
Standort des AusstellungsraumsKeine
-
Video-AusgangsinspektionBereitgestellt
-
MaschinenprüfberichtNicht verfügbar
-
Garantie auf Kernkomponenten1 Jahr
-
KernkomponentenMotor, Pumpe
-
TypeKOMPRESSOR
-
Garantie1 Jahr
-
KundendienstIngenieure stehen für die Wartung von Maschinen im Ausland zur Verfügung
-
Auflösung0,1g
-
Spannung380V/50Hz
-
KältemittelR22/R410A/R407C/R134A
-
Modell Nr.CM8600 R32 Kältemittel-Befüllsystem
-
Genauigkeit±0,5%
-
Vakuumgrad5Pa~10Pa
-
Ladegeschwindigkeit60 bis 260 g/s
-
AnwendungKlimaanlage, Wasserspender, Gefrierschrank, Kühlschrank
-
HafenShanghai Ningbo Tianjin Qingdao
-
HerkunftsortJiangsu, China
-
MarkennameCM
-
ZertifizierungCE, ATEX
-
ModellnummerCM8600
-
Min Bestellmenge1 Einheit
-
Preis$20,400.00/units 1-2 units
-
Verpackung InformationenHolzgehäuse, Palette für die Kühlmittelfüllmaschine CM8600
-
Versorgungsmaterial-Fähigkeit50 Einheit/Einheiten pro Monat
CM8600 R32 Refrigerant Charging System for Air Conditioner Production
Single System Auto Freon Gas Filling System
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum degree | 5Pa~10Pa |
| Charging speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Description
The CM86 refrigerant charging machine is specially designed for fast speed refrigerant charging at production lines. It features high speed charging, high accuracy, and multiple functions. The machines are compatible with refrigerants of CFC, HFC, HC, etc. and can be customized according to your special requirements.
Key Features
- Adopts CNC technology for accurate data processing and easy operation
- Charging/filling liquid gas (R134a, R22, R407C, R410A etc. Custom options available for R600a, R290, R32)
- Siemens PLC and colorful touch screen control system
- High accuracy flow sensors with resolution of 1~0.1g
- Wonfulay Pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging/filling quantity up to 99999g with rate of 60g~260g
- Automatic prompts when refrigerant in cylinder is low
- Adjustable vacuum time and inspection leak time
- Wonfulay filling gun improves charging/filling speed
- Wonfulay high vacuum pump achieves quick vacuum (5~10Pa)
- Multiple functions: vacuum, inspection leak, charging/filling, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Easy to move and operate

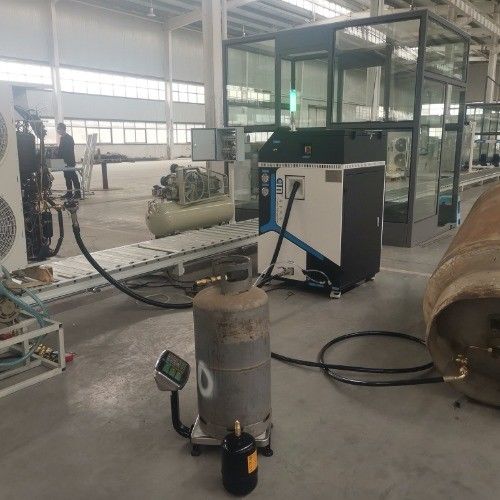

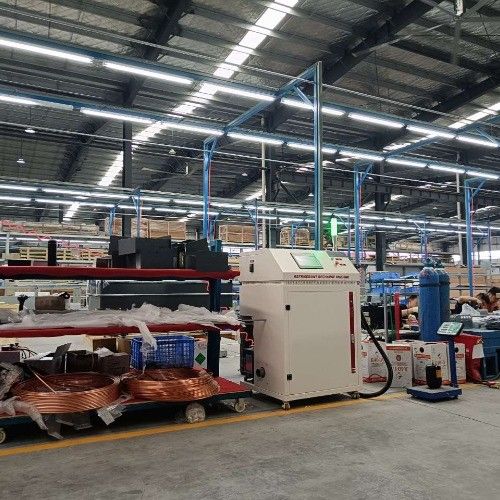

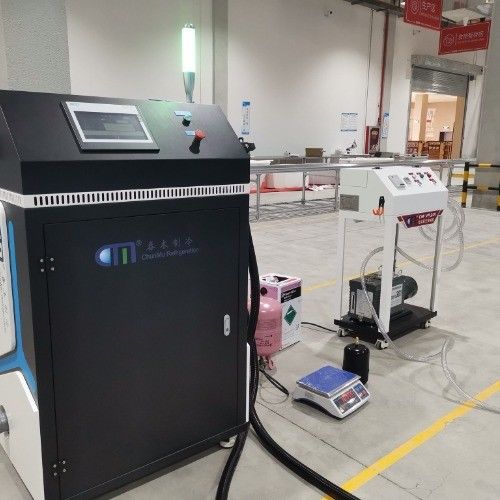

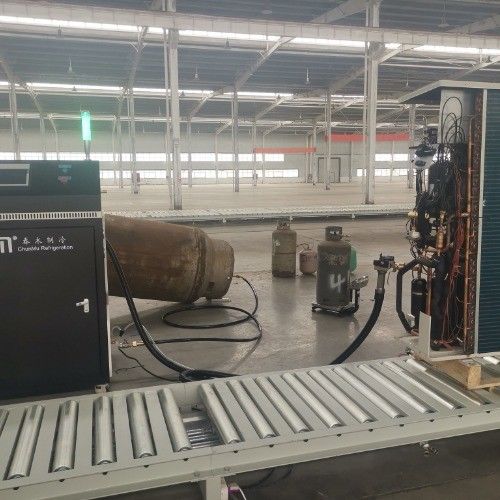

Product Images
