R32 refrigerant charging system
,380V refrigerant charging station
,50HZ refrigerant recovery system
-
Die SituationNeu
-
Anwendbare BranchenHerstellungsbetrieb
-
Gewicht (Kg)300
-
Standort des AusstellungsraumsKeine
-
Video-AusgangsinspektionBereitgestellt
-
MaschinenprüfberichtNicht verfügbar
-
Garantie auf Kernkomponenten1 Jahr
-
KernkomponentenMotor, Pumpe
-
TypeKOMPRESSOR
-
Garantie1 Jahr
-
KundendienstIngenieure stehen für die Wartung von Maschinen im Ausland zur Verfügung
-
Auflösung0,1g
-
Spannung380V/50Hz
-
KältemittelR22/R410A/R407C/R134A
-
Modell Nr.CM8600 R32 Kältemittel-Befüllsystem
-
Genauigkeit±0,5%
-
Vakuumgrad5Pa~10Pa
-
Ladegeschwindigkeit60 bis 260 g/s
-
AnwendungKlimaanlage, Wasserspender, Gefrierschrank, Kühlschrank
-
HafenShanghai Ningbo Tianjin Qingdao
-
HerkunftsortJiangsu, China
-
MarkennameCM
-
ZertifizierungCE, ATEX
-
ModellnummerCM8600
-
Min Bestellmenge1 Einheit
-
Preis$20,400.00/units 1-2 units
-
Verpackung InformationenHolzgehäuse, Palette für die Kühlmittelfüllmaschine CM8600
-
Versorgungsmaterial-Fähigkeit50 Einheit/Einheiten pro Monat
CM8600 R32 Refrigerant Charging System 380V 50HZ
CM8600 Dual System Refrigerant Charging Machine
Product Overview
The CM8600 refrigerant charging machine is specially designed for high-speed refrigerant charging at production lines. It features rapid charging, high accuracy, and multiple functions. The machine is compatible with various refrigerants including CFC, HFC, and HC types, with customization available for specific requirements.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model Number | CM8600 R32 refrigerant charging system |
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight | 300 KG |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Voltage | 380V/50HZ |
| Resolution | 0.1g |
| Precision | ±0.5% |
| Vacuum Degree | 5Pa~10Pa |
| Charging Speed | 60~260g/s |
| Refrigerant Compatibility | R22/R410A/R407C/R134A (Custom options available) |
| Applications | Air conditioner, water dispenser, freezer, refrigerator |
| Warranty | 1 Year (core components) |
| After-sales Service | Engineers available for overseas machinery service |
Key Features
- CNC technology for accurate data processing and easy operation
- Siemens PLC with color touch screen control system
- High accuracy flow sensors with 0.1g resolution
- Wonfulay pneumatic booster for stable pressure and large charging capacity
- Continuous charging capacity up to 99999g (60g~260g rate)
- Automatic low refrigerant detection and alert system
- Adjustable vacuum time and leak inspection time
- Wonfulay high vacuum pump achieves quick vacuum (5~10Pa)
- Multiple functions: vacuum, leak inspection, charging, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Portable design for easy movement and operation

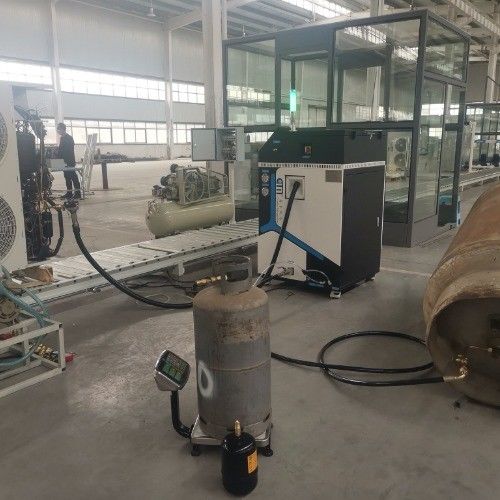

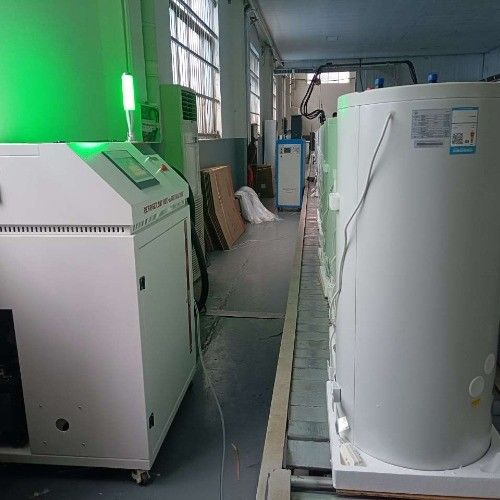

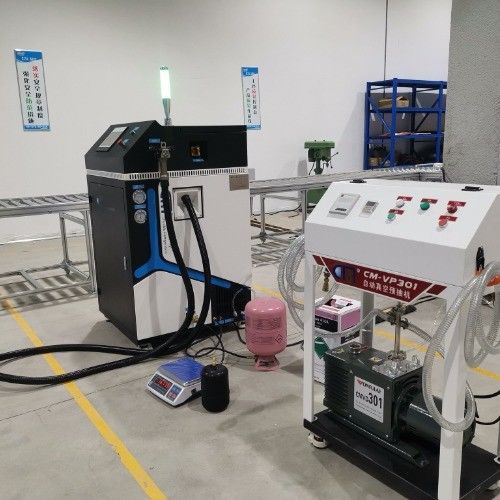

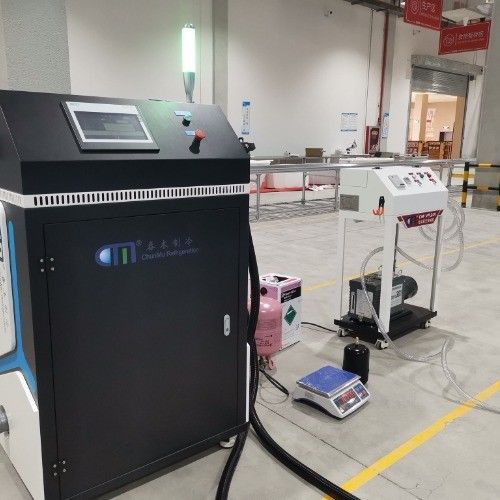

Product Images
Customization & Support
The CM8600 system can be customized to meet specific production requirements. Our engineering team provides comprehensive after-sales support, including overseas service when needed. Contact us to discuss how this refrigerant charging solution can be optimized for your manufacturing process.
